Obstruction Pattern, Tower shading studies.

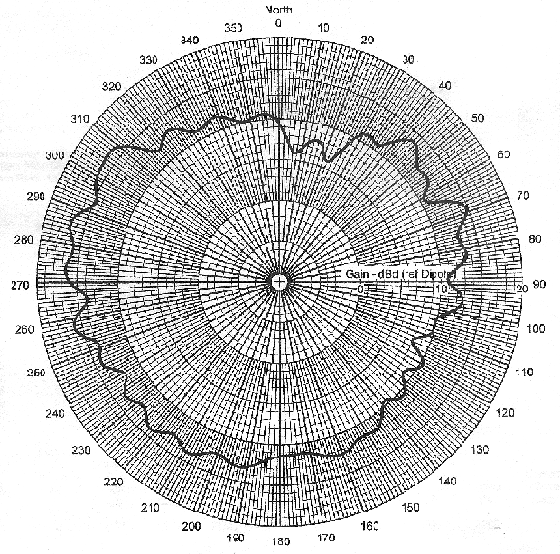

Krohe Electronics can provide a theoretical shading study given tower information. These studies can be done for patterned antennas. This study takes into account both structural members as well as conduits, transmission lines and other antennas. This type of study can be for either horizontal or vertical polarizations, Transmit or receive antennas, at frequencies from 20 MHz to 20 GHz. Below is an example of an LPTV study.
